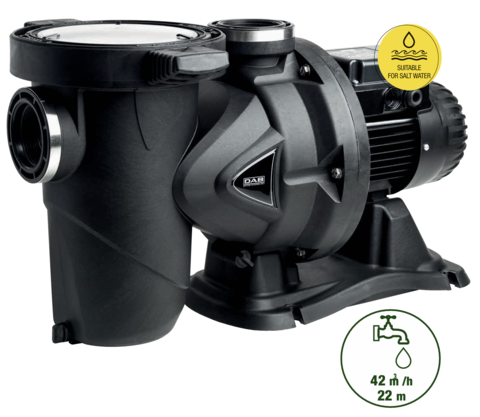

EUROSWIM 150 M

TECHNICAL DATA
Flow rate maximum: 42 m3/h
Head up to: 22 m
Type of pumped liquid: Clean or slightly dirty water with suspended solid bodies, long fibers; particularly aggressive water with high percentages of chlorine/bromine and PHMB (Polyhexamethylene Biguanide) or water treated with chlorine electrolysis process
Maximum % of glycol: From +4°C to +60°C
Min. and max. supported liquid temperature: +50°C
Maximum operating pressure bar / kPa: 2,5 bar / 250 kPa
Class of protection: IP X5
Motor insulation class: F
Impeller/s material: Technopolymer
Single phase power input: 230 V 50 Hz
Three phase power input: 3x230 V 50 Hz e 3x400 V 50 Hz

Pump to be used in residential building service for filtration in salt water or chlorine pools or in fishing farms.

CONSTRUCTION FEATURES OF THE PUMP
Technopolymer pump body. Transparent prefilter cover with bayonet closure. Nylon filter. Impeller and diffuser in technopolymer reinforced with glass fibers. Butterfly drain plug.

CONSTRUCTION FEATURES OF THE MOTOR
Two-pole asynchronous motor, available in single-phase or three-phase version. Motor casing in die-cast aluminum with cataphoresis surface treatment. Single-phase version with thermo-amperometric protection and permanent capacitor inserted as standard. Protection by the user for the three-phase version. Mechanical seal in carbon-alumina.
